Since 1991, Springwell Microelectronics has been providing quality urinal flush controllers and bespoke electronic designs to organisations nationwide. The first version of Smartflush was introduced in 1992 when Springwell saw a need to design an intelligent PIR Urinal Flush Control which was reliable, effective and straight forward to set up. Fast forward to now and we have an evolved, proven, PIR flush control which Springwell are incredibly proud of!

The Smartflush Urinal Control is carefully and thoughtfully designed and manufactured in the UK by Springwell Microelectronics Ltd

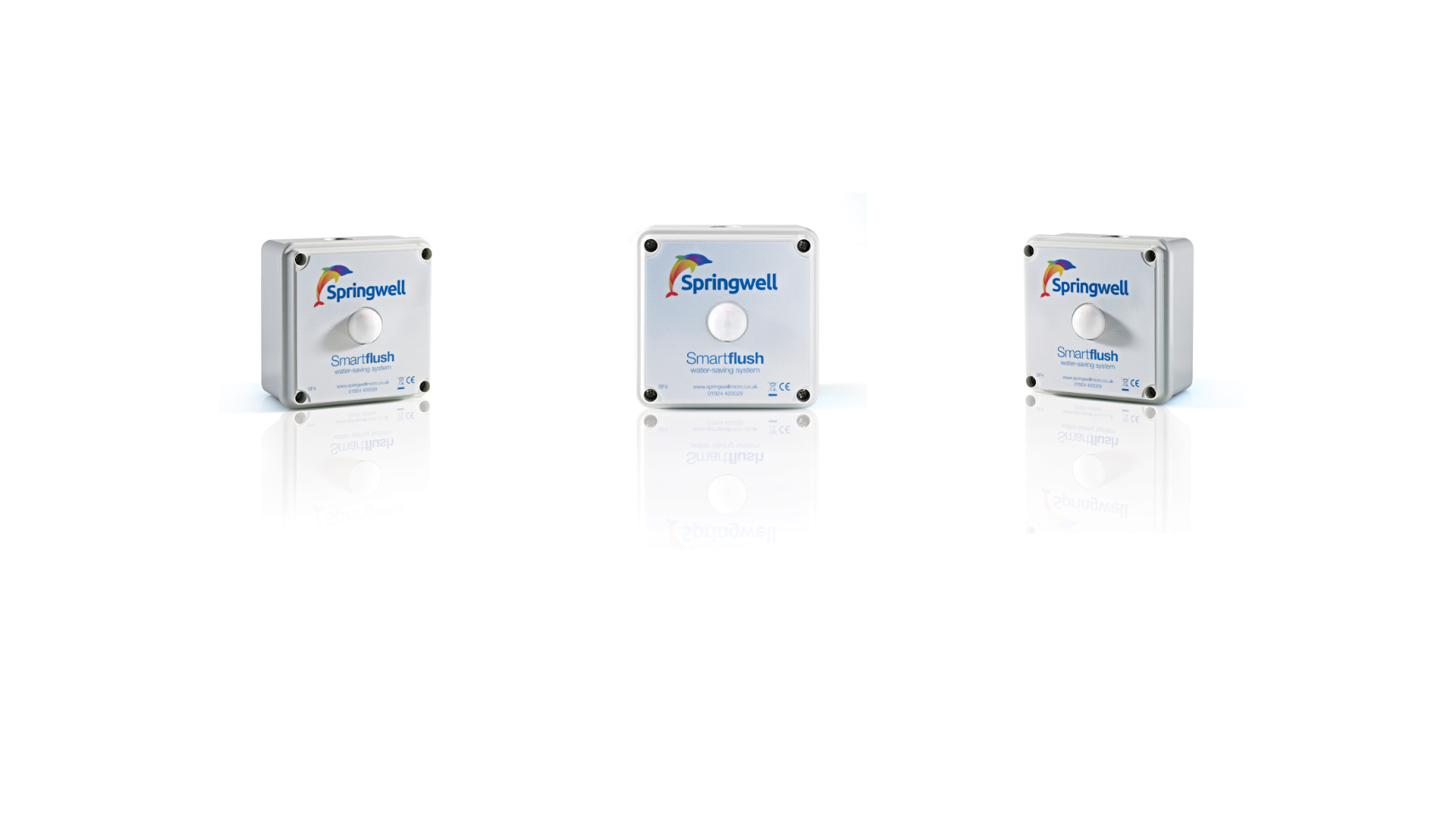

Smartflush Urinal Controller

WHY FIT SMARTFLUSH?

An uncontrolled urinal flushing every 20 minutes flushes 504 times each week, using about 240 cubic metres annually for a small, nine litre cistern.

The same urinal fitted with Smartflush will still flush within a short time of urinal use but use much less water by starting a flush cycle only after use.

This results in reduced water consumption and reduced metered water bills.

Smartflush is covered by a 2 year warranty and this can be upgraded to 3 years free of charge by registering online.

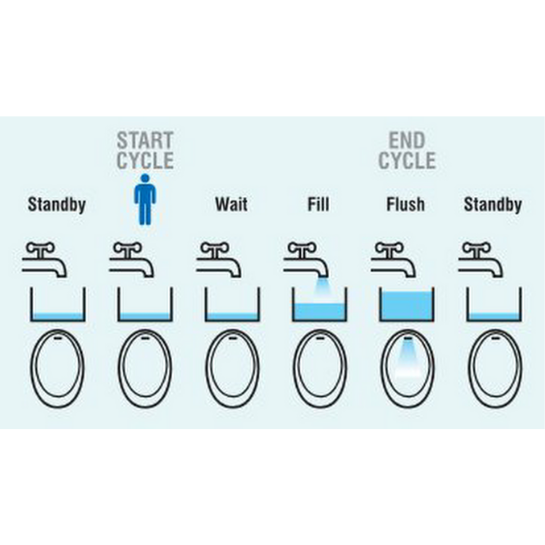

Urinal Flushing Cycle with water saving flush control

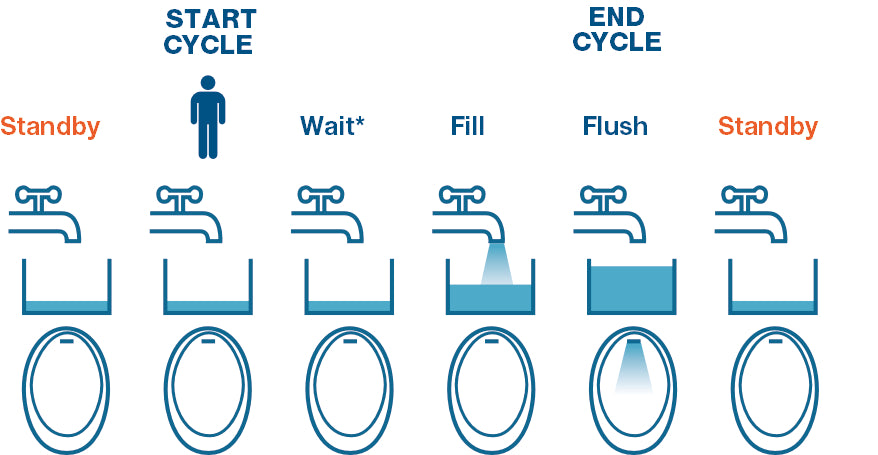

HOW SMARTFLUSH WORKS

Smartflush waits until movement is detected, then delays before filling and flushing the cistern.

The cycle time, from triggering to the end of the flush, may be set to 20, 30, 40 or 60 minutes.

The fill time can be quickly, easily and accurately set with no measuring or manual timing required. Fill time can be set anywhere between 20 seconds and 31 minutes, to the second. Fast filling ensures that the cistern gives a proper urinal flush, avoiding the constant trickle out which sometimes happens with trickle-fed cisterns.

In standby, an optional Maintenance Flush occurs every 8, 12, or 24 hours, timed from last flush.

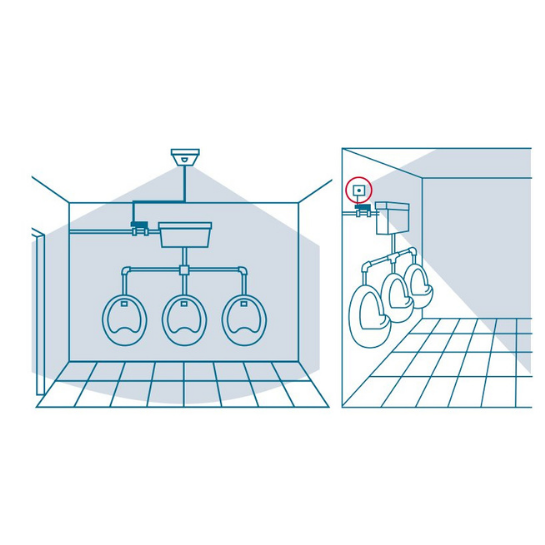

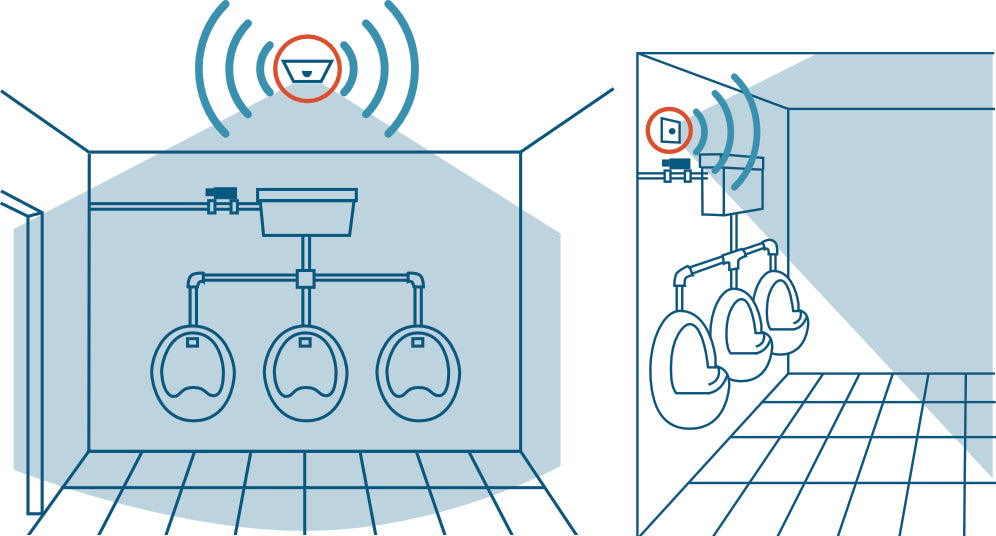

PIR sensor on ceiling and wall

With the use of a PIR sensor, Springwell Smartflush monitors the room and operates only when required. A hidden manual flush button can be used to start an extra flush, either for rinsing after cleaning or to test the flush.

If required, the PIR sensitivity can be adjusted with the flick of a switch.

Unlike hydraulically-operated urinal valves, the Smartflush urinal valve is designed to flush within a short time of every use, typically no more than 30 minutes, so the urinal stays fresher for longer.

The PIR sensor can be fixed anywhere to give optimum detection - on the ceiling or the wall.

5 year battery life on the SF4B Smartflush Urinal Flush Control

SUPERIOR 5-6 YEAR BATTERY LIFE

To ensure minimal maintenance and expense, the Springwell Smartflush battery pack has an operating life of 5-6 years.

The Smartflush controller features a 5 level battery state indication activated by holding the hidden button.

When the battery does get low the controller will look for movement and chirp when a person has been detected.

For peace of mind, an optional free battery reminder service is available and this can be set up using the extended warranty form.

A 3 year warranty extension is available on Smartflush at no extra cost along with a battery reminder service

WARRANTY EXTENSION AND BATTERY REMINDER SERVICE REGISTRATION

To extend your product warranty from 2 years to 3, please click on the button below and complete the online form. You can also use the form to request a free battery reminder for your Springwell Smartflush SF4B.

REGISTER
  • Save money on washroom flushing with a water management system from Springwell

    SAVE UP TO 90% ON METERED WATER BILLS

    Springwell Smartflush can save up to 90% on urinal flushing costs and water use. Full payback is typically seen within 12 months of purchase.

    Click here for examples
  • Smartflush uses a WRAS spproved valve and ensures compliance

    COMPLIANCE

    Installing Springwell Smartflush ensures compliance with ‘The Water Supply (Water Fittings) Regulations 1999’. The high quality valve supplied is WRAS approved.

  • ISO 9001 Quality Mark

    ISO 9001:2015 QUALITY SYSTEM

    Springwell Microelectronics Ltd operates a quality management system (QMS) to ensure that we deliver consistent high quality. Our QMS is accredited to ISO 9001 and a copy of the certification is available on request.

  • Springwell offer outstanding customer service and free technical support

    TECHNICAL SUPPORT

    Free technical support is available by phone or email. Springwell are committed to providing outstanding customer service.

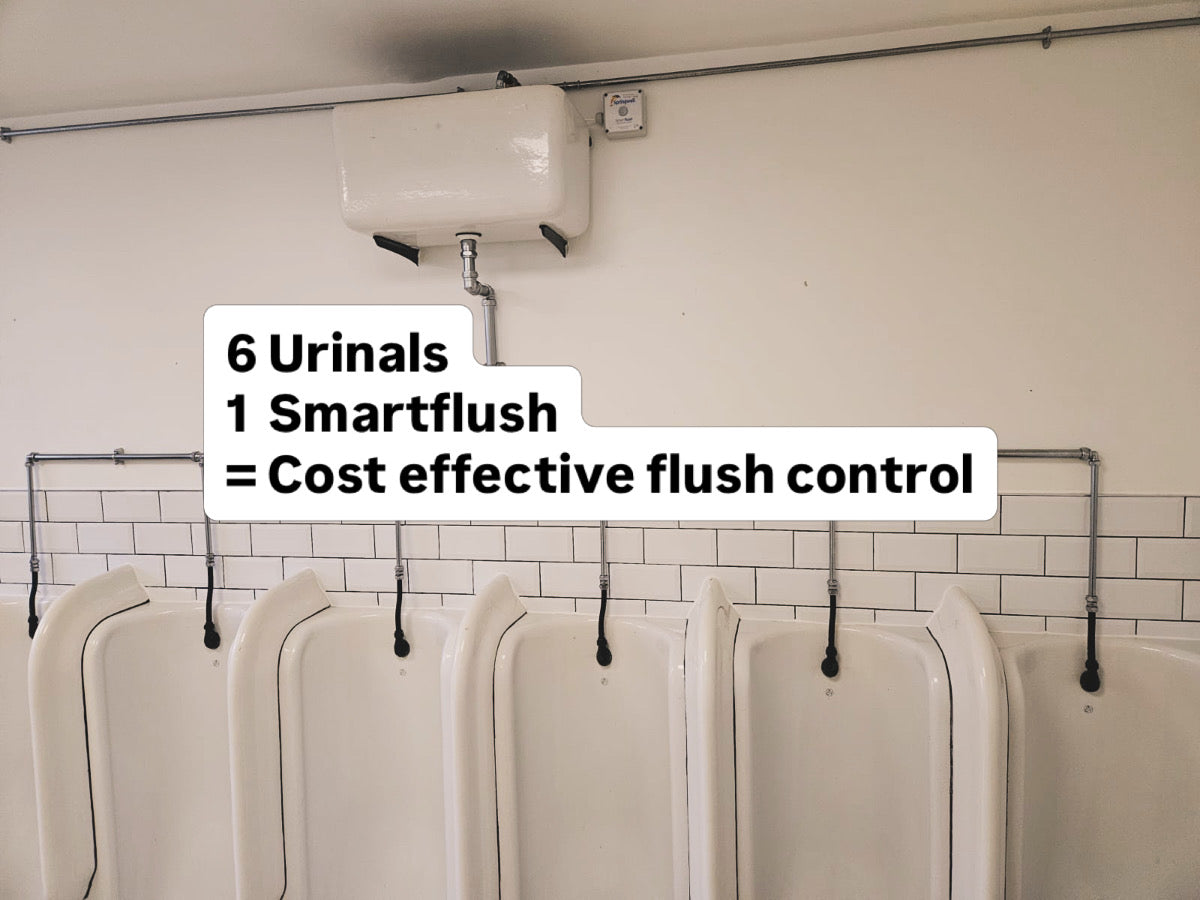

EXAMPLE INSTALLATIONS

  • Urinal flush control valve automatically flushing urinals
  • Smartflush automatic cistern flush valve flushing washroom urinals

BLOG POSTS

View all
1 3
View all
Manufactured in the United Kingdom

SKILLFULLY DESIGNED AND MANUFACTURED IN THE UK

The design and development of the Smartflush Urinal Flush Control is carried out in-house by Springwell. From testing PIR sensors, to writing microprocessor software, Springwell are capable of producing high end electrical designs and have built an enviable reputation.
