NEW Springwell Smartflush PRO Urinal Control 6V Battery Powered (SF5B)

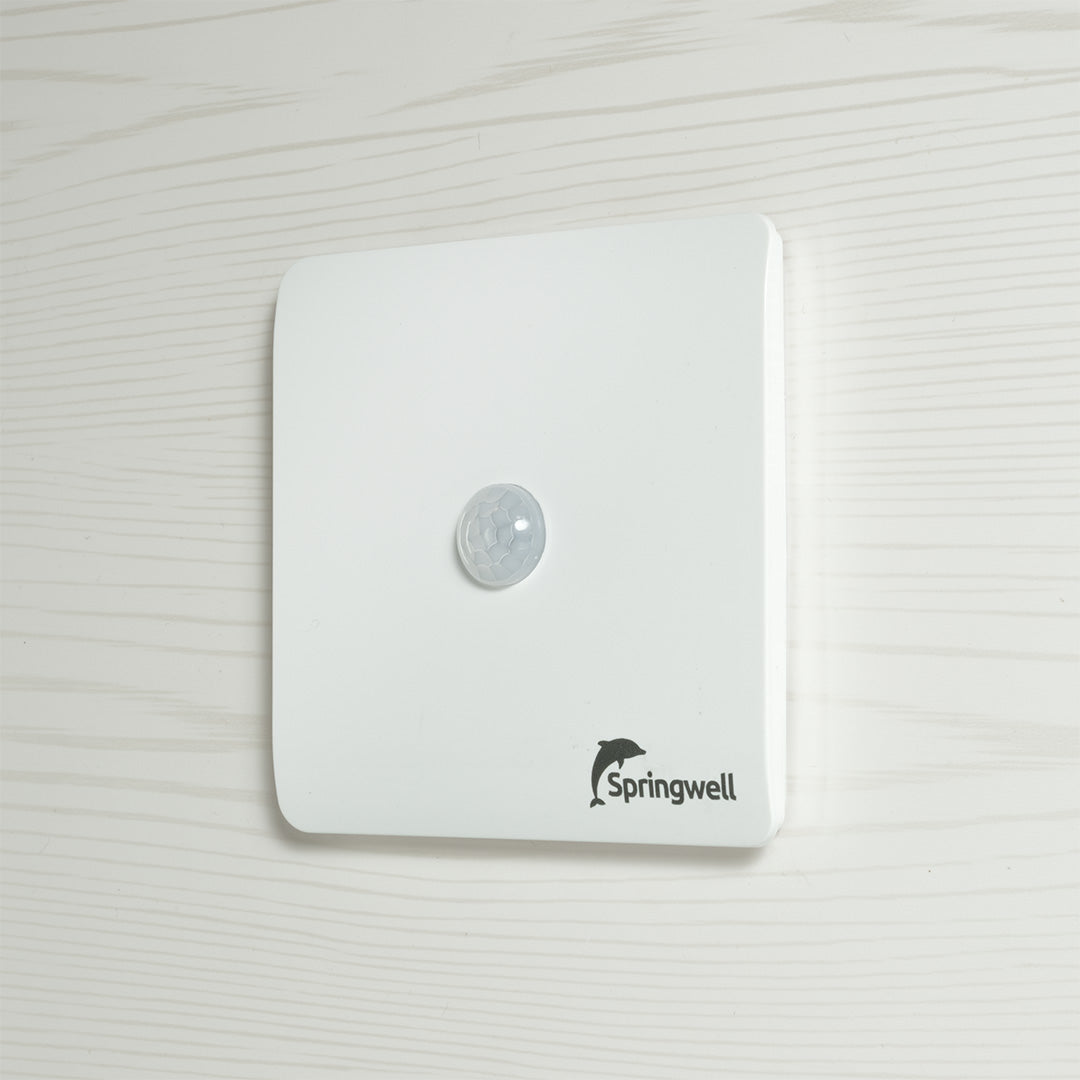

Smartflush Pro is a stunning new flush-mounted, slimline urinal flush control designed for a clean, modern finish. By utilising a 1-gang dry lining box, Smartflush Pro neatly integrates into the wall or ceiling, minimising visual impact and delivering a sleek, unobtrusive installation.

Smartflush Pro is an advanced urinal flush control featuring an integrated PIR sensor for fully automated operation. The intelligent sensor detects usage and activates flushing only when required, helping to reduce unnecessary water consumption while maintaining optimal hygiene. This hands-free operation ensures a reliable, efficient solution ideal for modern washroom environments.

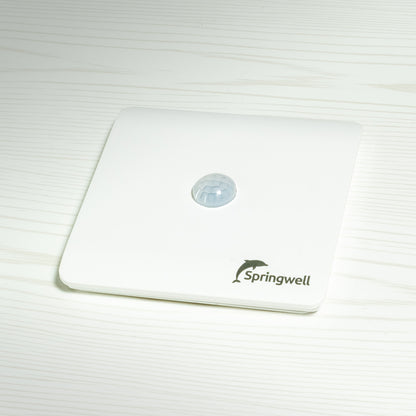

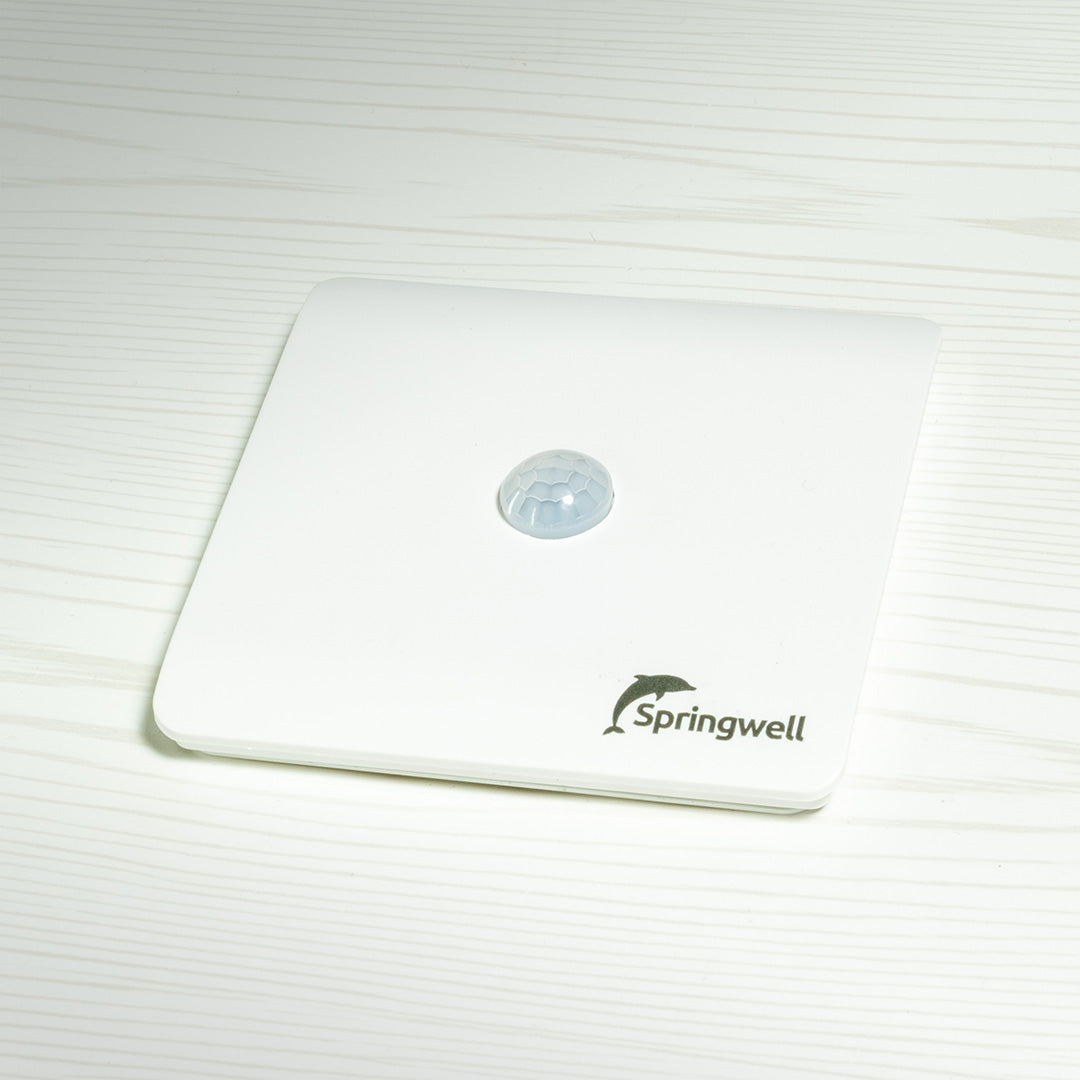

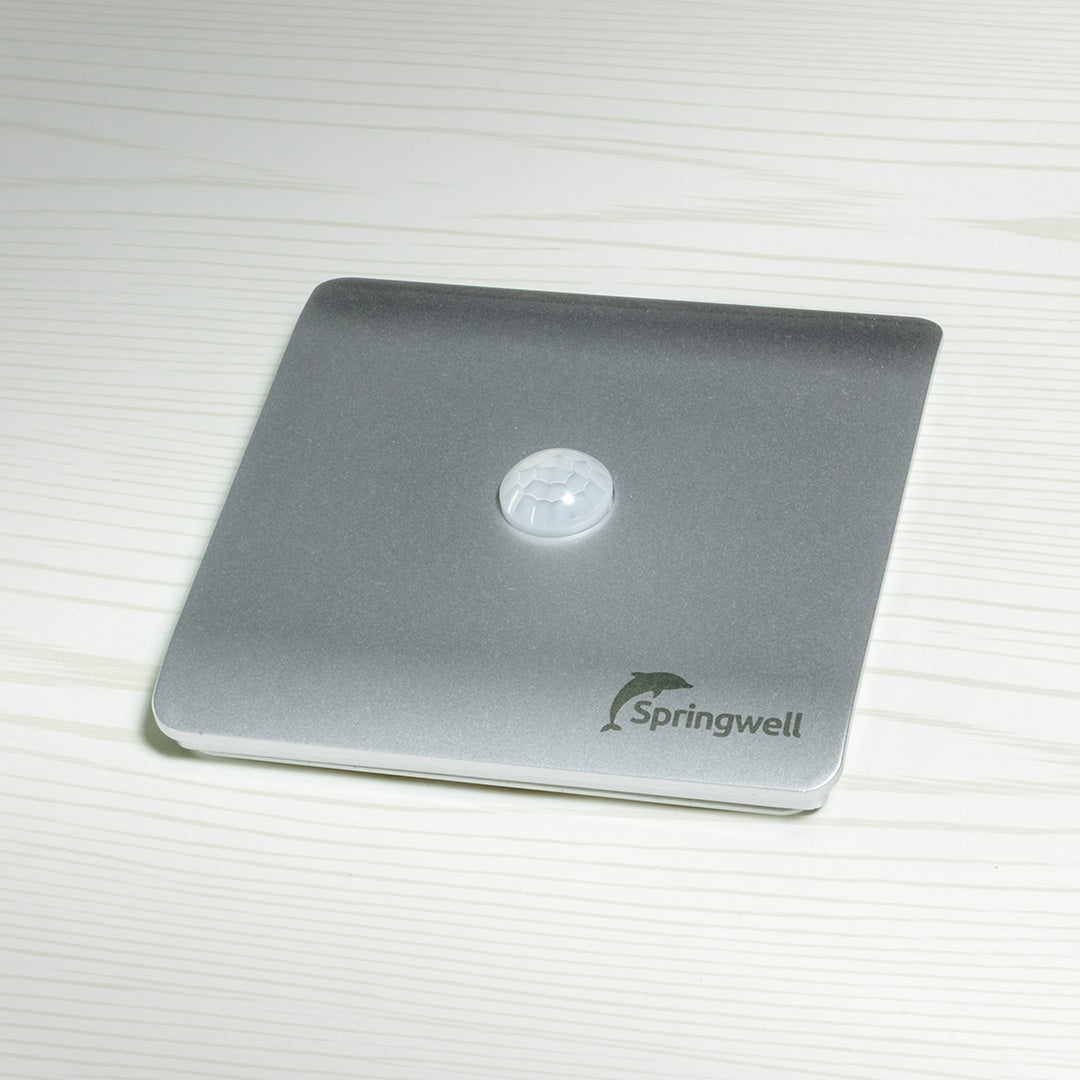

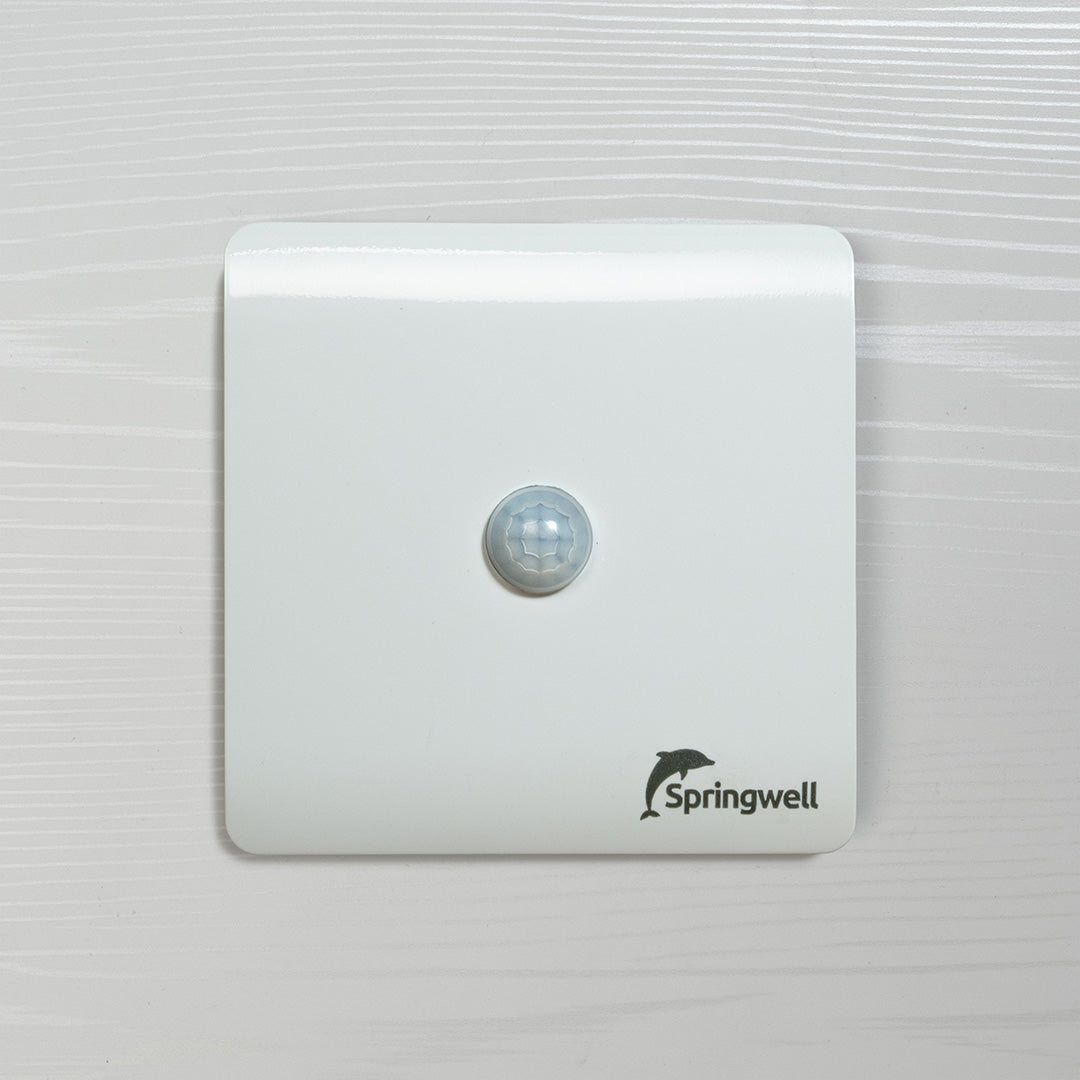

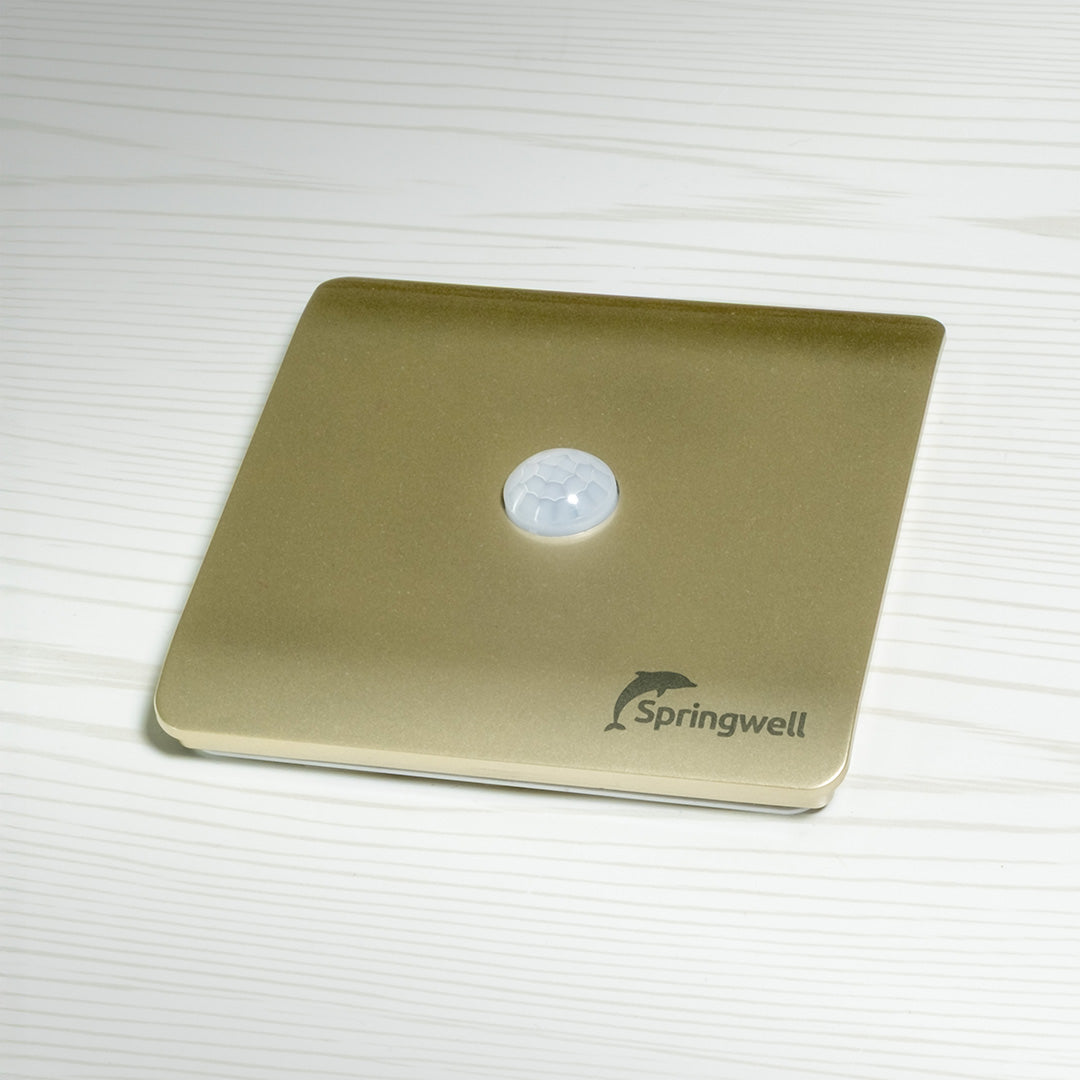

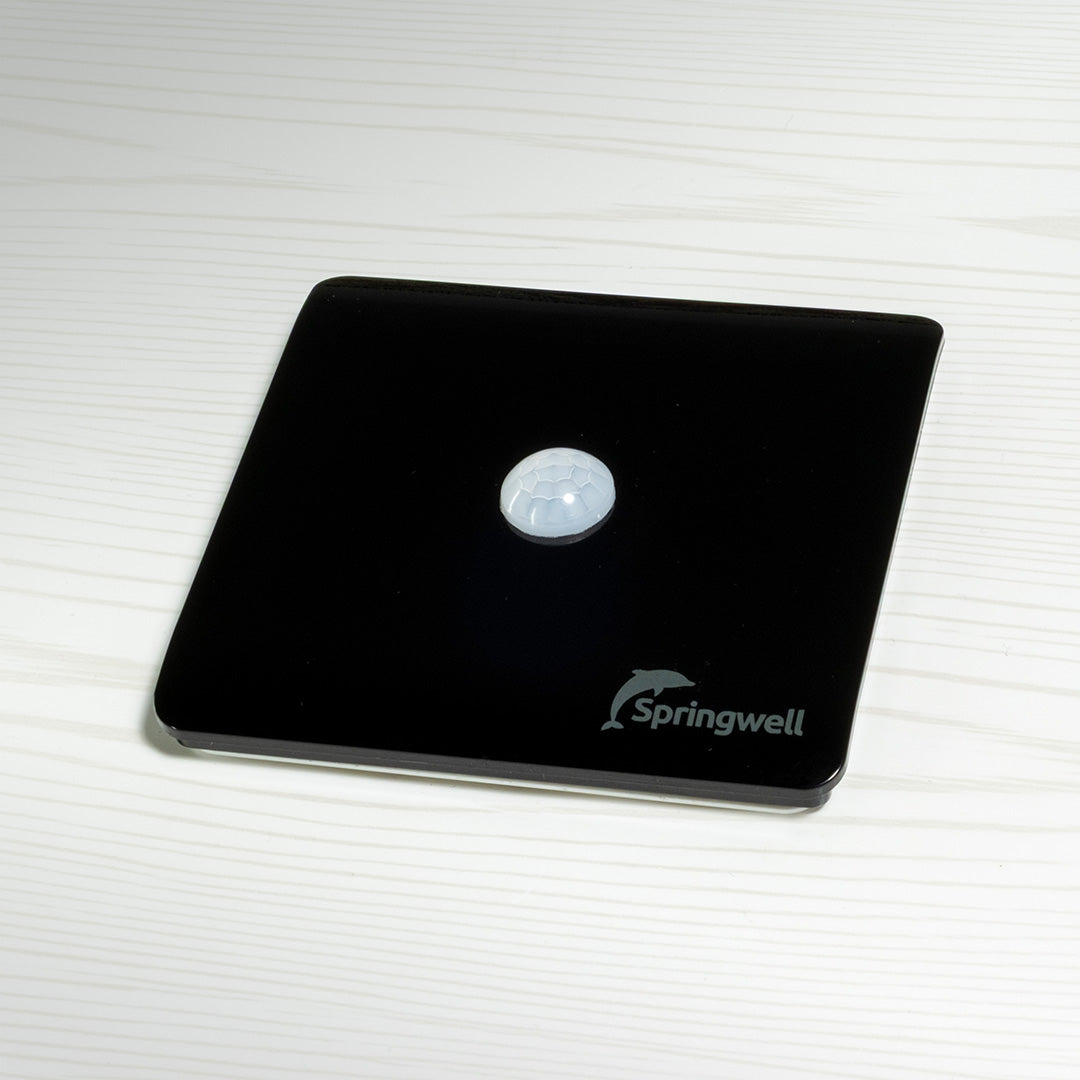

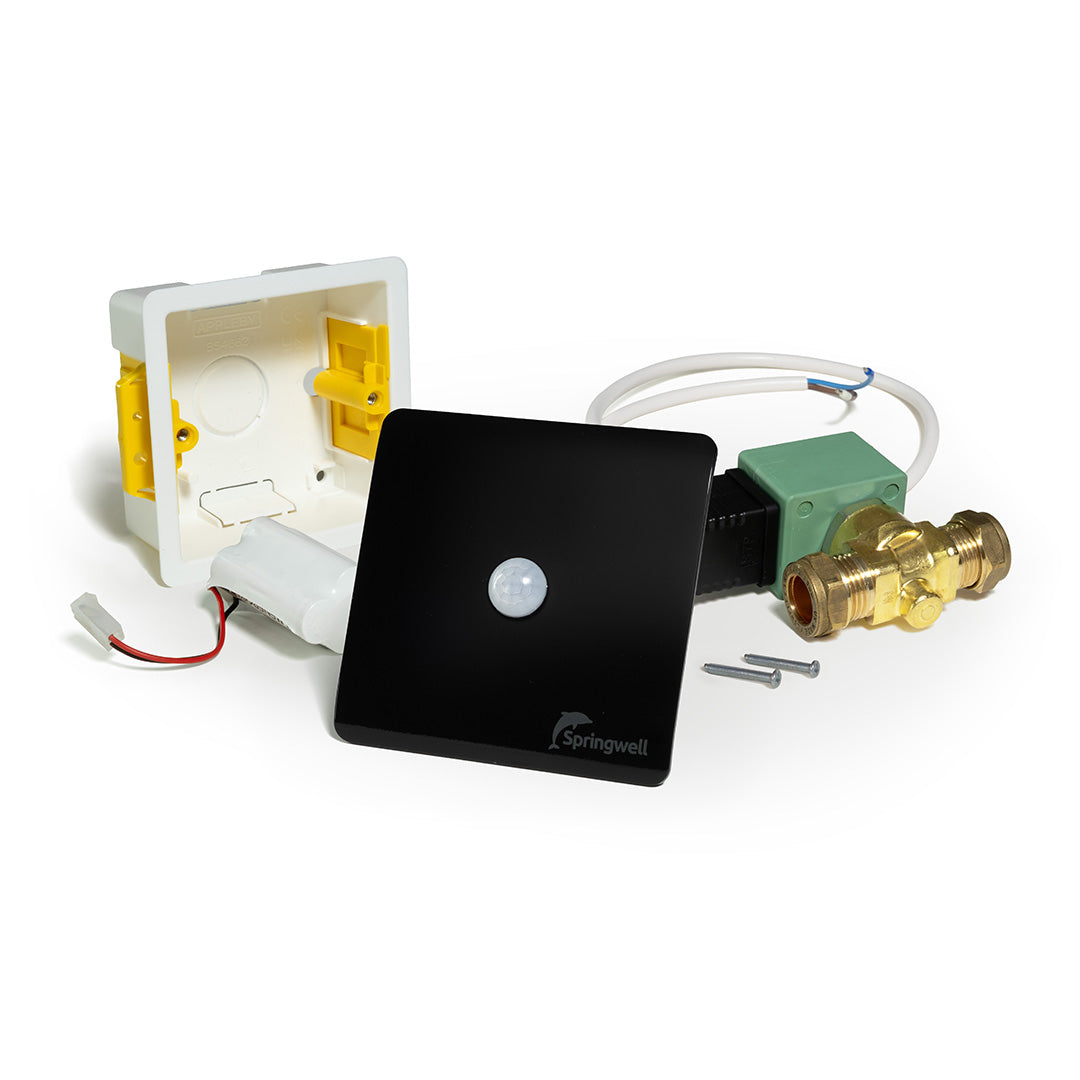

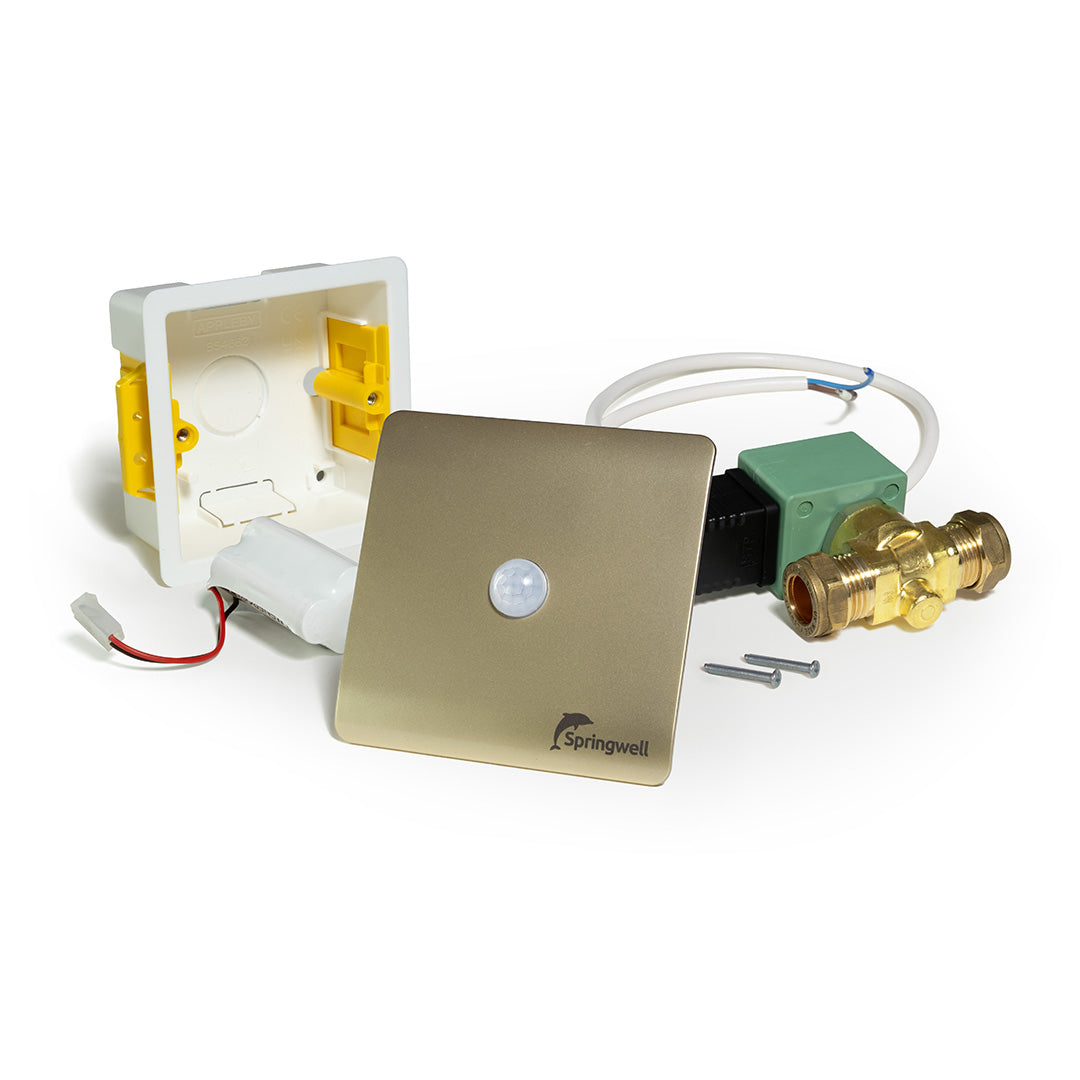

Choose from a white, black, gold or silver finish.

Key Features

• Programmable Cycle Time - Can be set to 20, 30, 40 or 60 minutes giving you full control of how often you want the urinal flush to occur
• Quick Flush Option - A quick flush can start after 15 seconds of detection if sufficient time has elapsed since the last flush
• Long Battery Life - Battery life is typically 5 years. An economical alkaline battery ensures minimum maintenance and expense. An idea of remaining battery life can be given by using the inbuilt 5-level battery state indicator
• Modern Slimline Profile - Smartflush Pro is neat and discreet and flush mounted into the wall or ceiling minimising visual impact. Four different colour fronts are available
• Fully Automated - With the use of a PIR sensor, Smartflush monitors the room and operates only when required; minimising water use and reducing water bills
• Concealed Manual Flush Button - The hidden manual flush button can be used to start an extra flush, either for cleaning purposes or to test the flush
• Quick and Easy Cistern Fill Time Setting - The length of time the solenoid valve stays open can be set automatically with no measuring or manual timing required. As well as a new simple fill time set up, SF5 has also been enhanced with optional pre-set fill times
• Adjustable Sensitivity Settings - Smartflush can be set to reduce the PIR sensor sensitivity to reduce any false triggers, e.g. if people are only washing hands rather than using the urinals
• Optional Maintenance Flush - A hygiene flush can be set to 0, 8, 12 or 24 hours keeping the urinals fresh for next use
• Diagnostics Tones - Different tones notify users to specific events such as wiring/power/connection issues enabling simple installation and monitoring
• Battery low tweeter - When the battery is getting low, the intelligent sensor will monitor for movement and when detected will give an audible alarm to alert that attention is required

How To Use

The battery operated Smartflush Pro can be installed by any competent plumber.

Full instructions can be found by clicking the link: SF5B instructions:

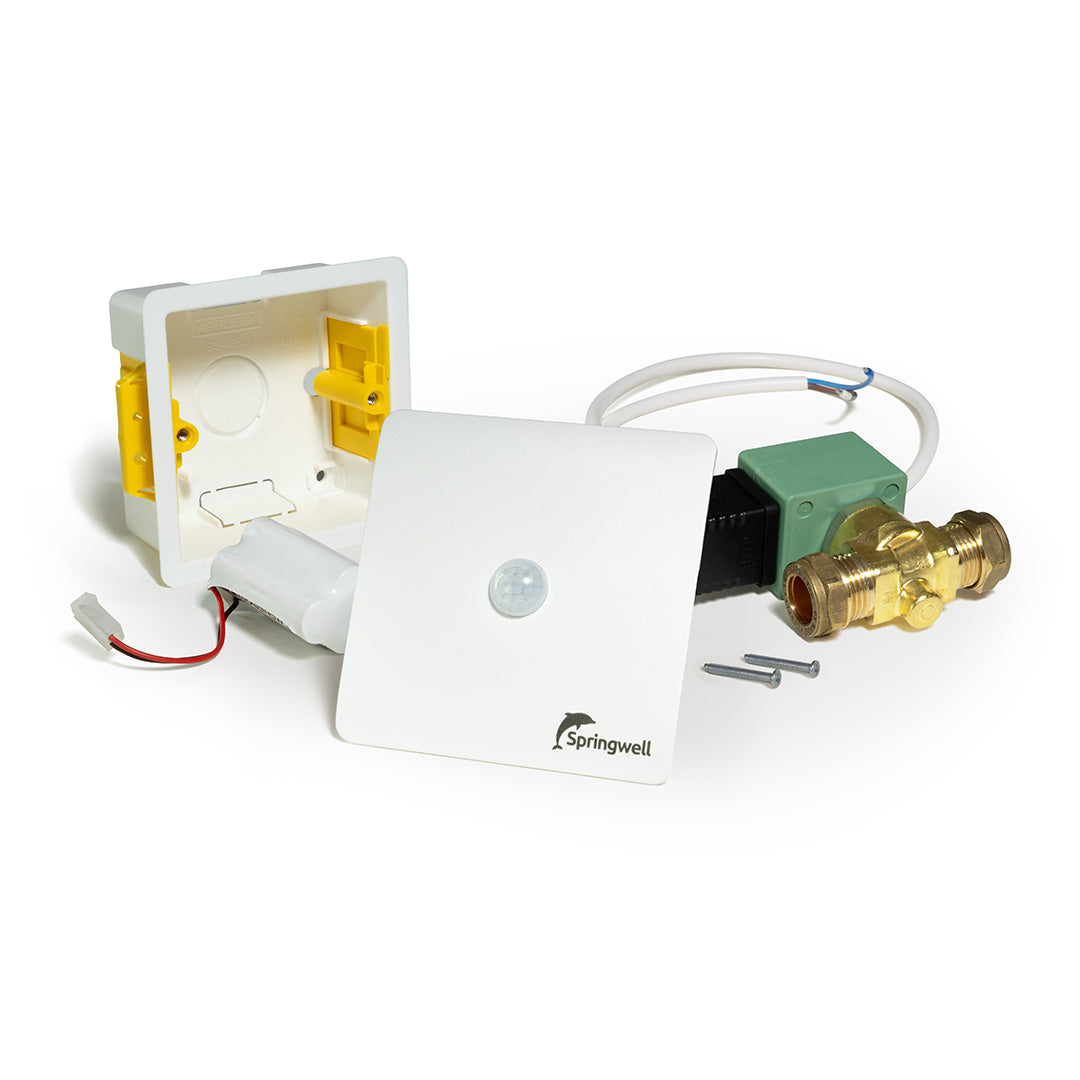

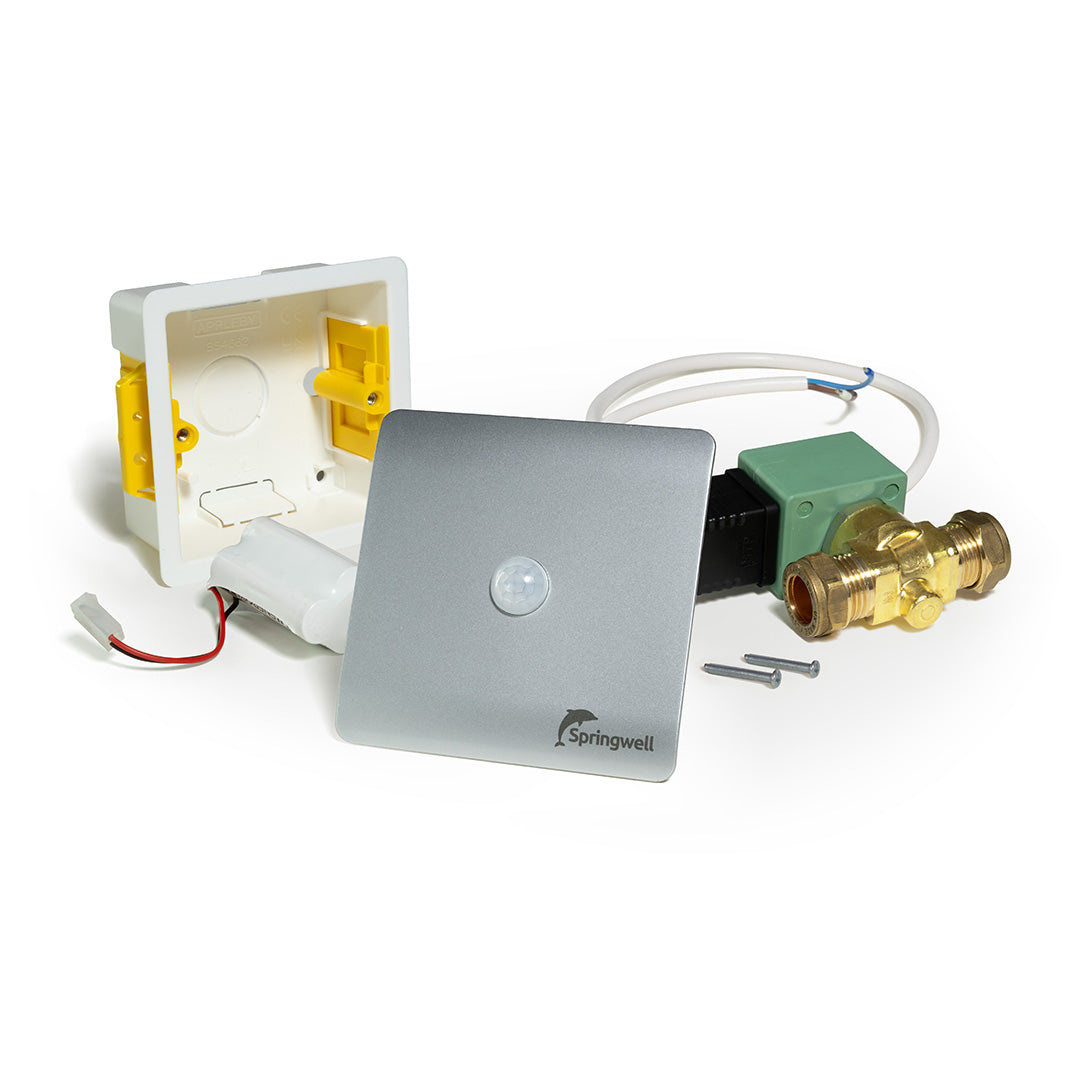

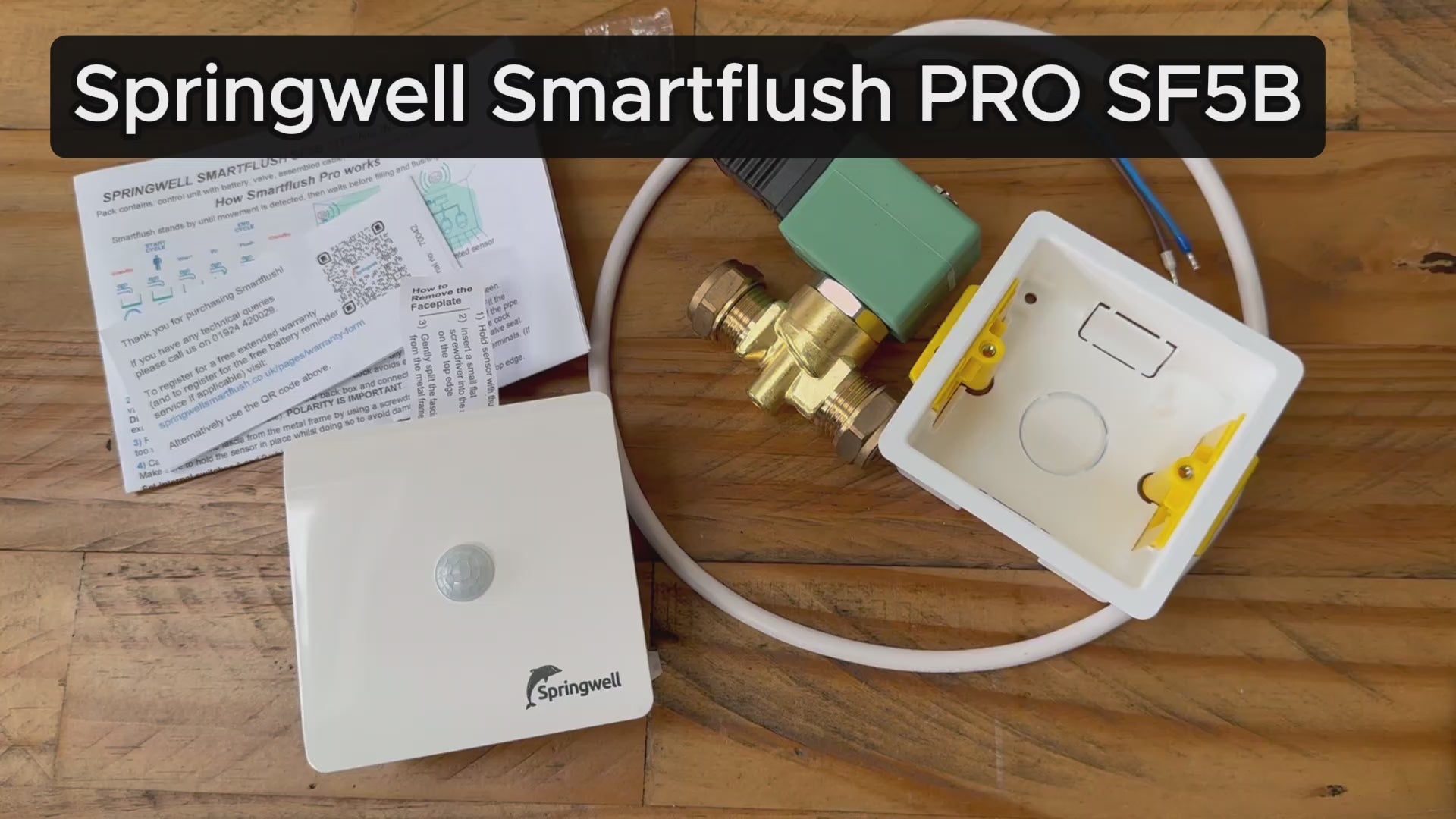

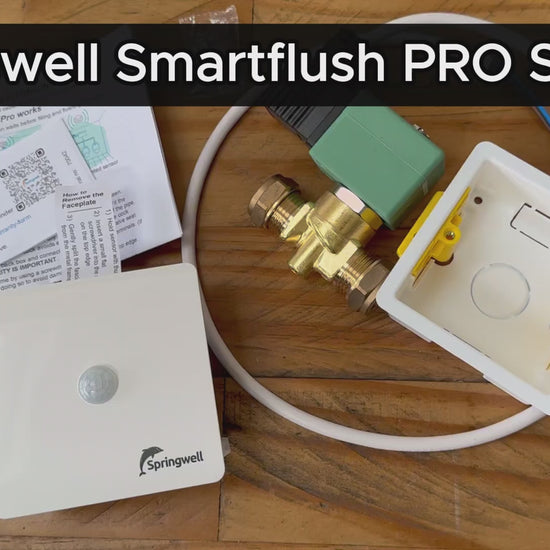

What's Included

• Smartflush Controller
• 1-gang Dry Lining Box
• 5 Year Alkaline Battery Pack
• WRAS approved Solenoid Valve
• Ready-Terminated Cable
• Screws
• Fitting Instructions

Our Guarantee

• 2 years warranty (3 years when completing the free warranty extension form)
• Free technical support by phone or email
• Outstanding customer service
• Proven reliability
• Products that comply with legislation
• Products manufactured in the UK to ISO 9001 quality standards

Product Specification Download

A leaflet including the Smartflush Pro specification can be found by clicking the link: Springwell Smartflush Pro Leaflet

Delivery

Free next day courier delivery on Smartflush Systems ordered before noon. Pricing for overseas delivery may vary. Further information can be found on our delivery page.
